Beschrijving

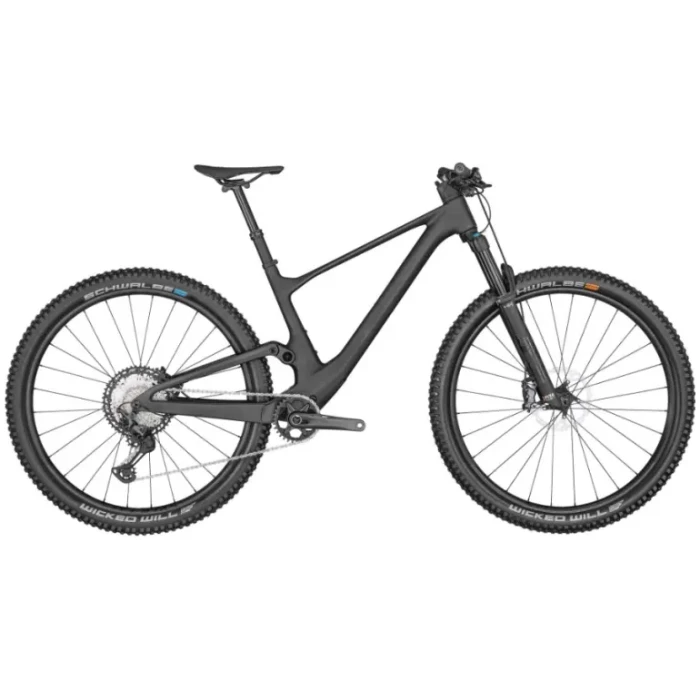

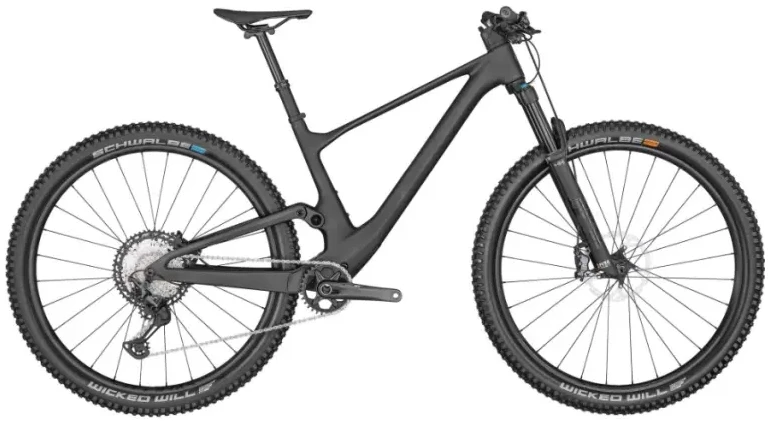

FRAME Spark Carbon HMF
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline
FORKFOX 34 Float Performance Elite Air FIT4
3-Modes with low Speed adj. / Kabolt 15x110mm axle
44mm offset / tapered steerer / Reb. Adj. / Lockout
130mm travel
REAR SHOCK FOX NUDE 5T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Reb. Adj.
Travel 120-80-Lockout / T165X45mm
REMOTE SYSTEMSCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
REAR DERAILLEUR Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed
SHIFTERS Shimano XT SL-M8100-IR / Rapidfire Plus
Ispec EV clamp
CRANKSET Shimano XT FC-M8120-1 / Hollowtech 2
32T
BB-SET Shimano SM-BB71-41A / shell 41x92mm
CHAIN Shimano SLX CN-M7100
CASSETTE Shimano XT CS-M8100-12 / 10-51 T
BRAKES Shimano XT M8120 4 Piston Disc
ROTOR Shimano SM-RT76 / 6 Bolt / F&R 180mm
HANDLEBAR Syncros Fraser iC SL DC Carbon
0° rise / back sweep 8° / mini Rise / 760mm
Syncros Performance XC lock-on grips
SEATPOST FOX Transfer Performance Elite Dropper Post
31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm
SEAT Syncros Tofino 1.5 Regular
Titanium rails
HEADSET Syncros – Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
WHEELSET Syncros Silverton 2.0-30 6 Bolt
F: 15x110mm, R: 12x148mm
30mm Tubeless ready rim 28H / Micro Spline
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools
FRONT TIRE Schwalbe Wicked Will 29×2.4″ EVO
Super Race / TLE / 67EPI / Addix Speed Soft
REAR TIRE Schwalbe Wicked Will 29×2.4″ EVO
Super Race / TLE / 67EPI / Addix Speed Grip
EXTRAS Syncros Fork Fender
APPROX WEIGHTS IN KG12.3 (Tubeless setup)
